Commscope CSMAPDU9VPI Cable Amplifier 9 Port HomeConnect Passive VoIP Amplifier
+3

Commscope CSMAPDU9VPI Cable Amplifier 9 Port HomeConnect Passive VoIP Amplifier

18153
$39.99
In stock
1
Product Details
UPC: 8.75
Brand: yes

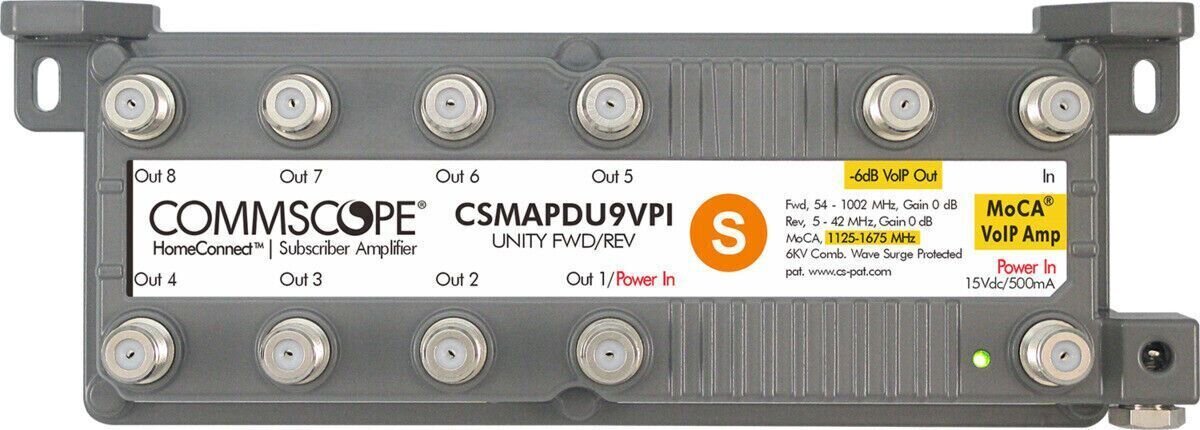

HomeConnect® Passive VoIP Amplifier with MoCA Connectivity, unity forward/reverse, Standard Split, 1.0 GHz Forward, 42 MHz return, nine ports, with power inserter
Specifications
Product Classification
Product Type RF amplifier
Product Brand
HomeConnect®
General Specifications
Device Type
All ports down amplifier | Two-way subscriber amplifier | VoIP subscriber amplifier
Application
Indoor | Outdoor
Patent Number
7912431 (expires 8/2/2025)
Video Ports, quantity 8
Video Standard NTSC
VoIP Passive Ports, quantity 1
Electrical Specifications
Distortion Performance (CCN), minimum 60 dBc
Distortion Performance (CSO), minimum 65 dBc
Distortion Performance (CTB), minimum 73 dBc
Distortion Performance (DSO), minimum 55 dBc
Distortion Performance (DTO), minimum 60 dBc
Distortion Performance (X-Mod), minimum 73 dB
Group Delay, 2nd channel, maximum 30 ns
Group Delay, channel 3, maximum 15 ns
Group Delay, channel 4–6, maximum 5 ns
Group Delay, reverse, maximum 25 ns
Hum Modulation, minimum -75 dB
Impedance 75 ohm
Operating Current at Voltage
380 mA @ 15 Vdc
Shielding Effectiveness, minimum 100 dB
Surge Capability Test Method
ANSI/SCTE 81 | IEEE C62.41-B3 (6 kV, 3000 A, Combination wave) on all ports
Surge Capability Waveform
1.2/50 voltage and 8/20 current combination waveform | 100 kHz ring wave waveform
Electrical Specifications, Isolation
Isolation at Frequency Band, output to output, minimum
25 dB @ 5–1002 MHz
Isolation at Frequency Band, output to VoIP, minimum
25 dB @ 5–1002 MHz
Isolation at Frequency Band, power port to RF output, minimum
60 dB @ 5–1002 MHz
Isolation at Frequency Band, VoIP to output, minimum
25 dB @ 5–1002 MHz
Electrical Specifications, MoCA
Band Rejection, output to input, minimum 40 dB
Band Rejection, VOIP to input, minimum 35 dB
Insertion Loss, output to output, maximum 35 dB
Insertion Loss, output to VOIP, maximum 35 dB
Insertion Loss, VOIP to output, maximum 35 dB
Operating Frequency Band
1125 – 1675 MHz
Electrical Specifications, Rx (Uplink)
Flatness ±1.0 dB
Insertion Loss, video ports 0 dB
Return Loss, minimum 20 dB
Noise Figure, maximum 18 dB
Operating Frequency Band 5 – 42 MHz
Electrical Specifications, Tx (Downlink)
Flatness ±1.0 dB
Gain, video ports 0 dB
Noise Figure, maximum 10.5 dB
Operating Frequency Band
54 – 1002 MHz
Return Loss, minimum 20 dB
Electrical Specifications, VoIP
Insertion Loss Rx at Frequency Band, VoIP ports, maximum
4.3 dB @ 5–42 MHz
Insertion Loss Tx at Frequency Band, VoIP ports, maximum
4.5 dB @ 54–550 MHz | 6.5 dB @ 550–1002 MHz
Return Loss at Frequency Band, VoIP ports, minimum
20 dB @ 5–1002 MHz
Environmental Specifications
Operating Temperature
-40 °C to +60 °C (-40 °F to +140 °F)
Safety Standard SCTE
