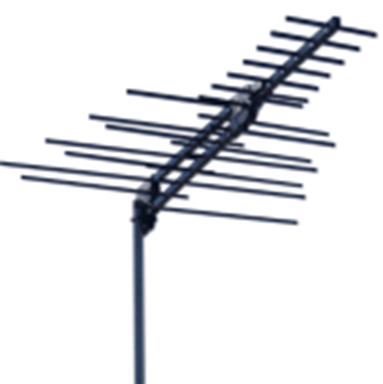

2) BA200

High Band VHF/UHF Near-Fringe Antenna
Channels 7-50
22 Elements
53.5 inch boom length

Orders received by 3:00 PM Central Time ship the same day (Mon-Fri).

Get the most popular antenna made in Australia, now available in Florida at John's Antennas. The BA200 is far suburban, near-fringe capable (approximately 40-50 miles). Receives hi-VHF-UHF, RF channels 7-50. HDTV ready for all of your Over The Air (OTA) antenna needs!

The BA200 is also available with an extended UHF section for higher gain on weak UHF stations, part number BA200F. The extended elements make it near-fringe to fringe capable (approximately 50-70 miles). The XF version includes the diagonal support arm.

The extended UHF elements (and diagonal support arm) are also available separately to convert a BA200 to a BA200XF, part number BA-KIT (only available by phone, 352-237-3811).

Please note: the diagonal support arm shown in the Antenna Man YouTube video is not included with this antenna. It is only required on the longer BA200XF version with the extended UHF elements.

Tru-Band Metro Plus Black Arrow Antenna

The Hills Black arrow is a high gain, log periodic, vhf/uhf TV Antenna. Suitable for reception in metro areas, this antenna is designed and built in Australia. It comes with an industry leading 5 year warranty.

The Tru-Band Metro Plus Black Arrow antennas are a revolutionary new combination antenna that have been designed for the digital-only TV environment. These antennas provide the highest digital performance characteristics, combined with sensational appearance and robust construction. The antenna configuration provides high gain for prime to inner fringe signal areas. A tuned diplexer balun combines the characteristics of the VHF and UHF sections of the antenna, whilst also rejecting out-of band interference signals that can cause digital picture break-up. The TRU-BAND™ Metro antennas provide the highest MER performance against benchmark tests. Even when signal levels are relatively low, there is additional MER margin above the “cliff effect”, which ensures that the risk of pixelation is minimized. The basic TRU-BAND™ Metro antenna provides sufficient gain for all fringe and near deep fringe areas and is built to provide years of trouble-free viewing. The TRU-BAND™ Metro Plus has additional gain for lower signal areas and comes in a sensational all-black finish for low visual impact, especially on modern homes.

Features
Designed for the precise digital frequency bands for true HD performance
Boomlock™ manufacturing technology – patent pending
New mounting clamp for quicker and safer installation.
Ultrasonically sealed balun prevents water ingress for maximum reliability
Matched diplexer balun provides cleanest digital TV signals and rejects interference
Strong mechanical construction
Lightweight and compact
Sensation black finish for low visual impact

Specifications
Model: The Black Arrow
Product Code: JABA200
Reception Conditions: far suburban, near-fringe
VHF Channels: 7-13
VHF Gain: 7-9
VHF F/B Ratio: 13-15
UHF Channels: 14-69
UHF Gain: 7-10
UHF F/B Ratio: 16-20
Balun Type: PCB Diplexer
Return Loss: >10dB
Connector: F Type
Impedance: 75 Ohm
Weight: 6.2 lbs
Boom dimensions: 17x17mm
Element diameter: 8mm
Element construction: Boomlock bonded
Material (antenna): 6000 series aluminium allow
Material (clamp): Galvabond
Finish: (black): Black
Finish (hardware): ceramic coating for corrosion prevention
Mounting pole: 25-38mm
